Vertical elevation
The vertical elevation system allows for a diaphanous, obstacle-free space under the backrest, increasing the work positions for the dentist and assistant. This configuration also allows for a frontal view of the patient with an undistorted view or the middle line, perfect for precision in occlusion examination.
- Minimum chair height of 480mm and a maximum chair height of 780mm
- Synchronised back and feet movement
- Maximum patient load of 160kg
- Folds at 90°
- Chair movements are controlled by pedal and via "Easy-touch" control keypad, with micromotor reverse indication
seat controls
Flexibility in operation is paramount in professional applications. Nevermore so than when a patient's healthcare and wellbeing are at your fingertips. This chair features several touch and memory control features to ensure precise movement without compromise.
- Extendible and reclinable footrest
- Selectable elevation speed for precision treatments
- Shift movement 300mm
- Seat movements can be controlled manually using the right joystick
- The four programmed seat position memories can be controlled using the left joystick
SoftPlus™ upholstery
High-quality, flame retardant, and phthalate-free, SoftPlus™ upholstery for the ultimate patient comfort. Available in a range of colours to suit your practice.
Supported by a fully aluminium frame to offer a light, safe, and anti-corrosion backbone to this dynamic and strong design.
1. Aluminium frame
The unit, chair, and pedal are all manufactured in light anti-corrosive aluminium alloy for strength and durability. As a result, this chair is capable of supporting a patient's weight up to 160kg.

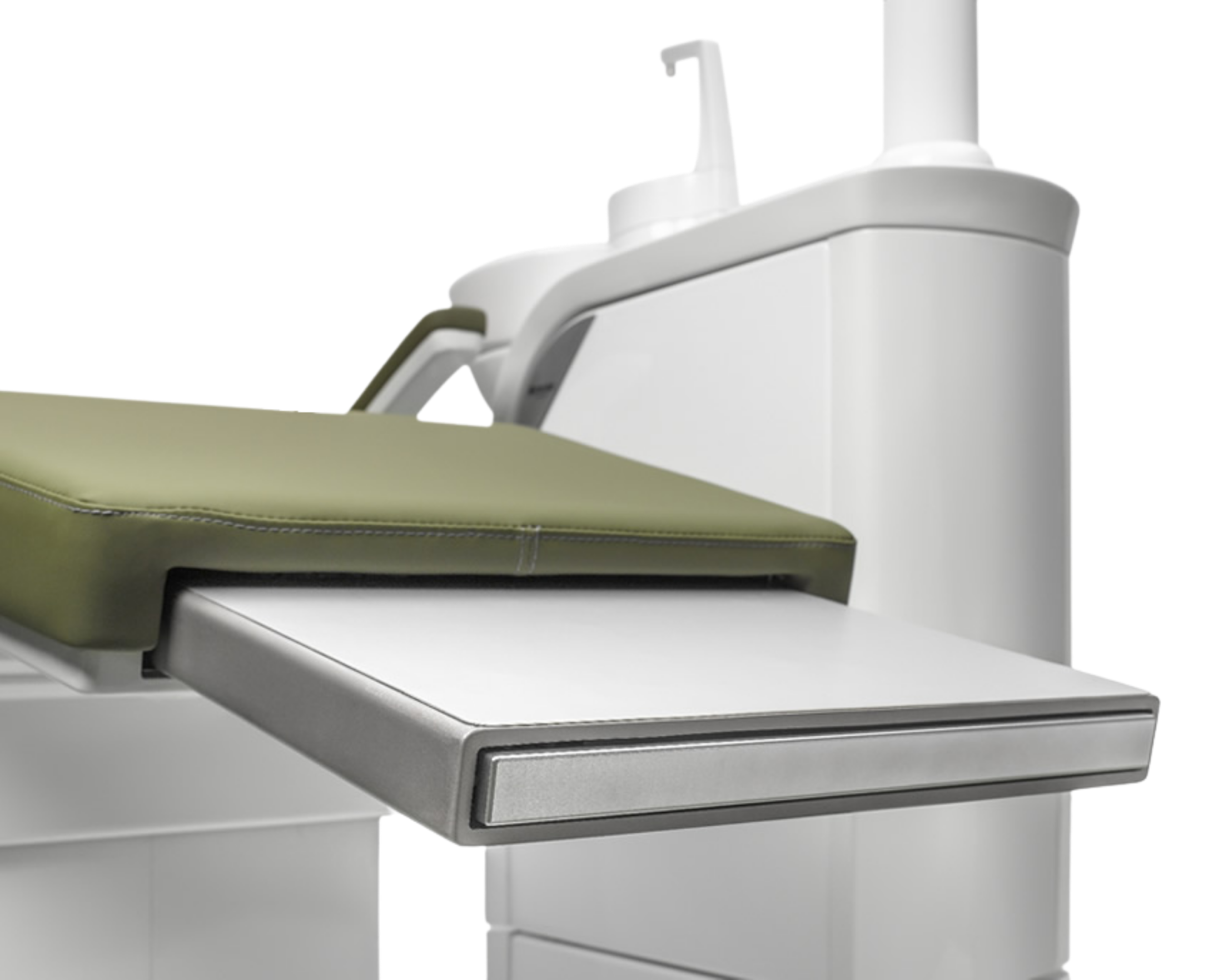

2. Ergonomically designed leg rest
The 90˚ folding leg rest provides improved accessibility to elderly and disabled people. The Ancar patient chair also features an extendible
footrest when reclined.
3. Movement & memory controls
The rear joysticks feature both manual and memory movements, as well as automatic chair return-to-zero movement, three programmable chair settings, and automatic extension of leg-rest combined with backrest movement.
4. Vertical elevation
The minimum chair height is 480mm and the maximum chair height is 780mm. Selectable elevation speeds put you in control, while the synchronised back and feet movement supports the patient for comfort and confidence.
